Makina Osokera a Pattern Yoyendetsedwa ndi Kompyuta TS-3020

Kufotokozera Kwachidule:

Makina Osokera a Pattern Oyendetsedwa ndi Kompyuta 3020ndimakina osokera a mtundu wa Juki okonzedwandi malo okwana 30cm*20cm. Ntchito ya makinawa ndi yofanana ndi 2210, pomwe malo osokera ndi akulu.

Makina Osokera Oyendetsedwa ndi Makompyuta 3020ndi makina otchuka kwambiri.
Makinawo akhoza kukhala ndi chotchingira cham'mbali kapena chipangizo chodulira chomwe chingathe kusoka chizindikiro chaching'ono kapena cholumikizira china.
Makina osokera a Pattern 3020ndi yoyenera mitundu yambiri yokongoletsera ndi kusoka nsapato zotsika mtengo,zilembo zazikulu ndi zizindikiro, kusoka zidutswa ziwiri kapena zingapo za zilembo zazing'ono ndi zizindikiro nthawi imodzi, komanso kukonza mawonekedwe a matumba ndi nsapato.

Tumizani imelo kwa ife Tsitsani ngati PDF

Tsatanetsatane wa Zamalonda

Ma tag a Zamalonda

Kanema

Ubwino

1. Kuyendetsa galimoto ya Servo kuti iyendetse bwino axis yayikulu komanso X/Y. Dongosolo lowongolera ma servo motors limayendetsedwa mwachindunji kuti lipange poyambira ndi poyimitsa ndendende.
2. Mawonekedwe omveka bwino a manambala amapangitsa kuti ntchitoyi ikhale yosavuta. Mawonekedwe a pateni amatha kuwonetsedwa pazenera pamene wogwiritsa ntchito akusintha pateni, zomwe zimapangitsa kuti wogwiritsa ntchito azitha kutsimikizira ndikusintha deta ya pateniyo mosavuta.
3. Chogwirizira ulusi chatsopano chamagetsi chowonjezeredwa chimayendetsedwa ndi solenoid. Wogwiritsa ntchito amatha kusintha mphamvu ya ulusi wapamwamba kudzera pa bolodi logwirira ntchito nthawi iliyonse akafuna, zomwe zimapangitsa kuti kulondola kosintha ulusi wapamwamba kukhale kolondola.
4. Dongosololi limagwiritsa ntchito chosinthira cha USB chomwe chimagwiritsidwa ntchito kwambiri kuti chikwaniritse kusamutsa mawonekedwe ndikusintha pulogalamuyo.
5. Ikhoza kuwonjezeredwa chosindikizira cha mbali kapena flip flop.
6. Palibe chifukwa chogwiritsa ntchito akatswiri, koma kungogwira ntchito yosavuta.

Mitundu ya 3020

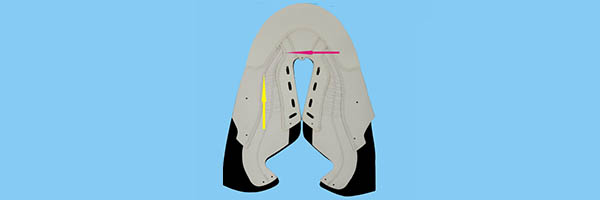

Nkhope ya nsapato ya 3020

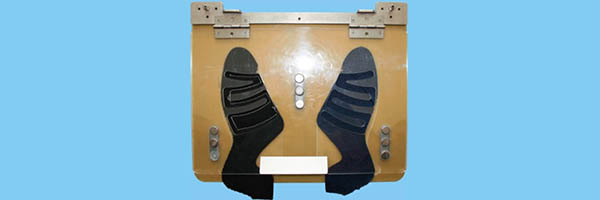

Chomangira nkhope cha nsapato

Kugwiritsa ntchito

Makina Osokera Oyendetsedwa ndi Makompyuta 3020ndi yoyenera mmitundu yonse ya kukongoletsa ndi kusoka nsapato zotsika mtengo.Zolemba zazikulu ndi zizindikiro, kusoka zidutswa ziwiri kapena zingapo za zilembo zazing'ono ndi zizindikiro nthawi imodzi, komanso kukonza mawonekedwe a matumba ndi nsapato.

Mafotokozedwe

Chitsanzo	TS-3020
Malo osokera	300mm 200mm
Liwiro lalikulu	2800rpm
Kutalika kwa mawonekedwe osokera	0.1-12.7mm (Kusasinthika Kwapang'ono: 0.05mm)
Kukumbukira mphamvu	Kuchuluka: 50,000 stitches
Malo osinthira pansi pa phazi lapakati	0~3.5mm
Kutalika kwa kukweza phazi lapakati	20mm
Kutalika kwa kukweza phazi lopondereza kunja	25mm
Kulemera	190Kg
Kukula	125X110X135cm
